ARTEMIO FRANCHI’S STADIUM, FLORENCE

Laser Scanner Survey of the Artemio Franchi Stadium real estate complex and surrounding areas.

Technologies Used: Laser Scanner Survey, BIM, and Drone Photogrammetry.

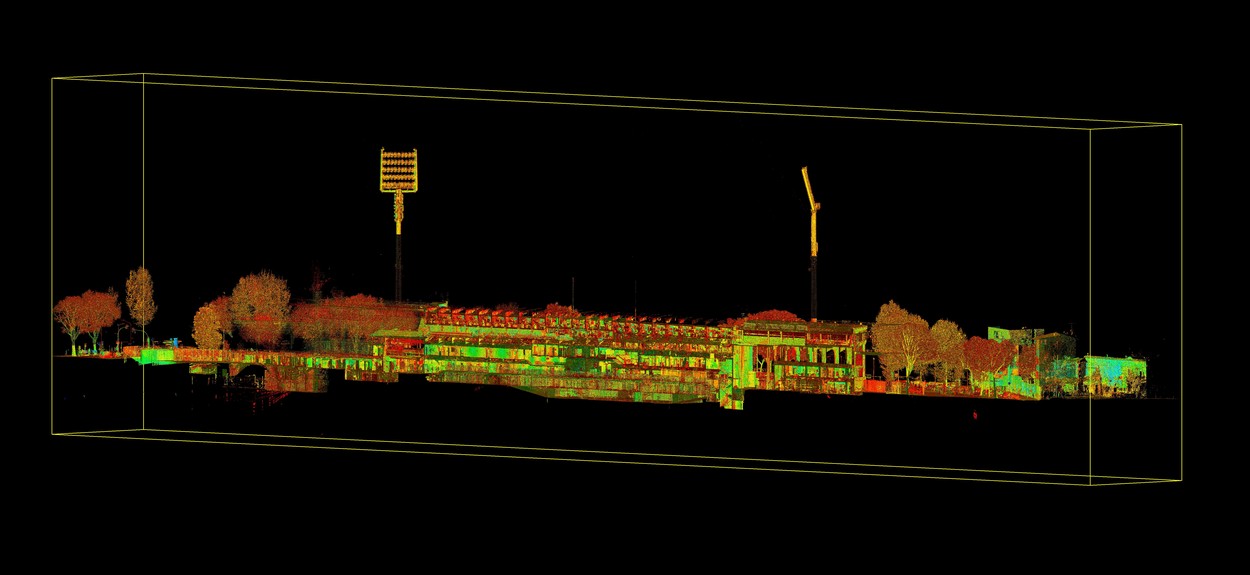

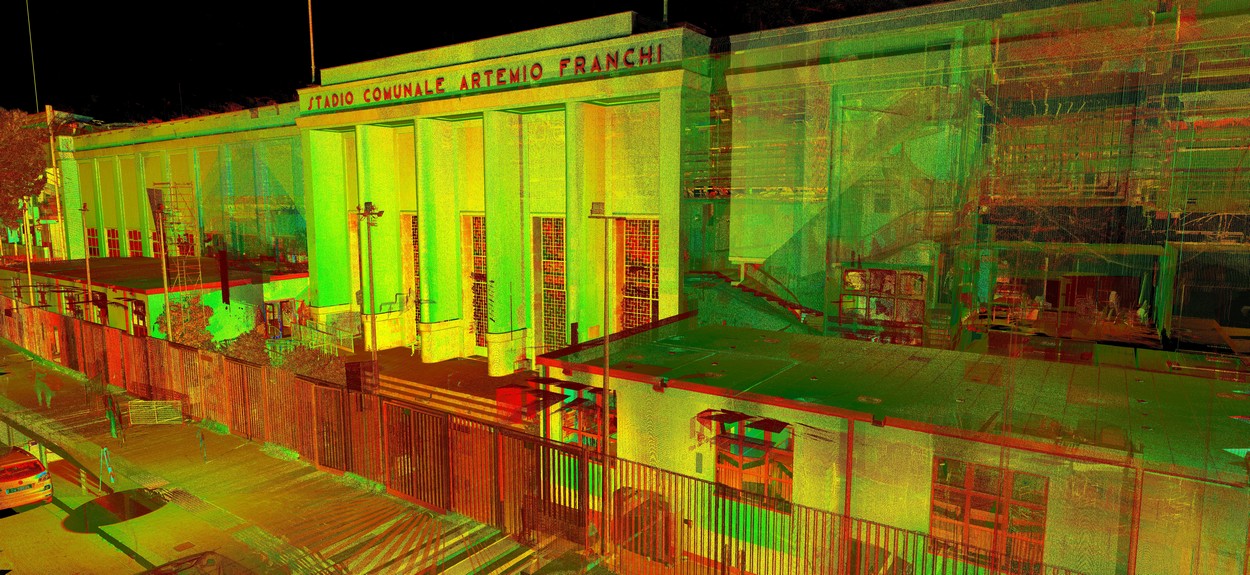

The Artemio Franchi Stadium complex is located in Florence, Viale Manfredo Fanti. For this project, a 3D Laser Scanner survey campaign was carried out, integrated with drone photogrammetry covering the entire stadium and all surrounding areas. Subsequently, complex architectural geometries were modeled from the point cloud within a BIM Revit environment, with the production of floor plans, sections, axonometric cross-sections, and renders.
